Our truck

Technical details

Manufacturer Mercedes-Benz
Modell Arocs 1835 A 4×4
Transmission Automatic Power Shift 3
Engine power 260 KW / 354 PS
Cubic capacity 7.700 ccm
Torque 1400 Nm
Empty weight 13.500 kg
Total weight 18.000 kg


Length 8800 mm
Width 2480 mm
Height 3880 mm
Wheelbase 4500 mm


Outside dimensions 6030 x 2480 x 2250 mm
Inside dimensions 5900 x 2350 x 2110 mm
Beds 1 x 2000 x 1600 mm (Rear bed)
1 x 2000 x 1300 mm (Reconstruction seating area)
Heater ALDE Compact 3020 gas und 230 V with boiler 8 l
+ 20 l (Elgena 230 V) Hot water boiler
Fridge 130 l Compressor
+ 65 l Freezer
Fresh water 650 l
Grey water 250 l
Black water 120 l
Gas 1 x 60 kg Gas tank
+ 1 x Gas bottle
Power source 450 Ah Lithium battery pack – 6 x 100 Wp solar
Windows KCT- Real glass windows and KCT-skylight with combination blind
Doors and flaps GFK
Manufacturer Firma Frank Woelcke Heimsheim


What was important to us?

Here our goal for two people was to build as small as possible and as large as necessary with appropriate storage space and cooling and freezing capacity.

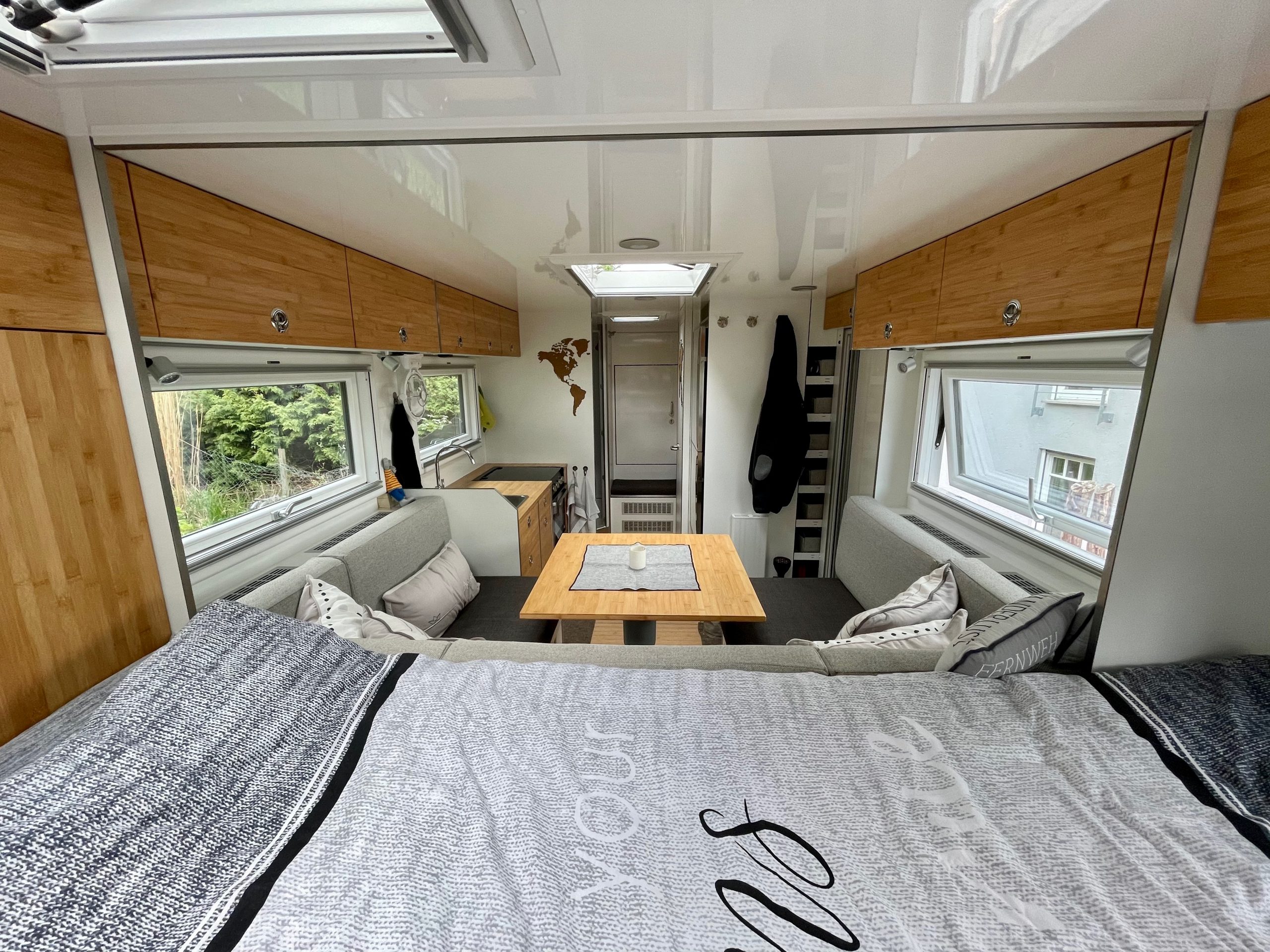

Live & Eat
The light-flooded room was of particular importance in the planning of this area. In addition, we like to sit comfortably opposite each other while eating. The space on both sides gives us the opportunity to comfortably put our feet up and enjoy the panoramic view outside. The entire living area is large enough for a meal for up to four people. It is possible to convert the seating area into a bed.

Sleeping Area
We planned the beds across the direction of travel in order to keep the body as compact as possible. In the sleeping area, we have also attached great importance to a good view of nature. Therefore the window with a view to the rear, which, however, becomes dirty more quickly on longer journeys on dusty roads.
We can separate the sleeping area from the living area with a mosquito net that is magnetically attached to the ceiling and the two side frames.

Bathroom & Toilet
What was important to us here was the possibility of sharing the bathroom area in different rooms on their own. The result was the island solution with a separate toilet room, the separate shower room and the central area around the wash basin.
